Why Multicast?

• Broadcast 🤬
• Multiple unicast 😬
• Multicast 🙂

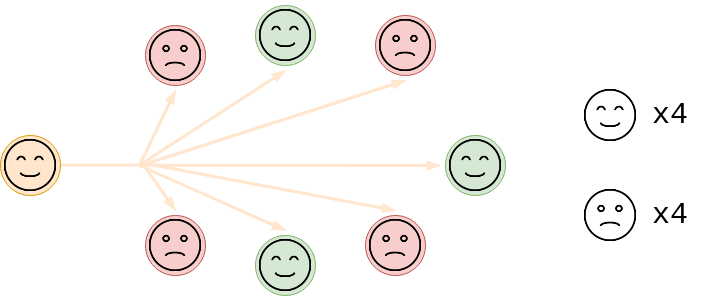

Broadcast

• Broadcast is bad 🤬
• What can be done?

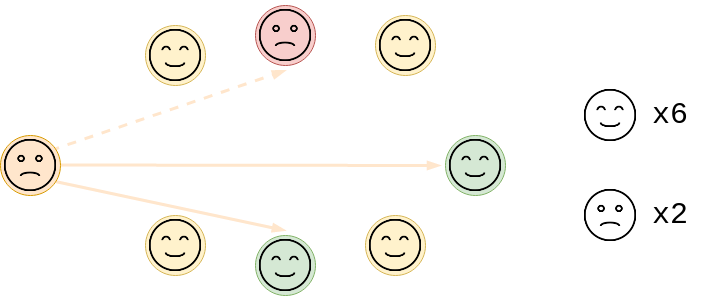

Multiple unicast

• Wastes bandwidth
• Doesn’t scale with users

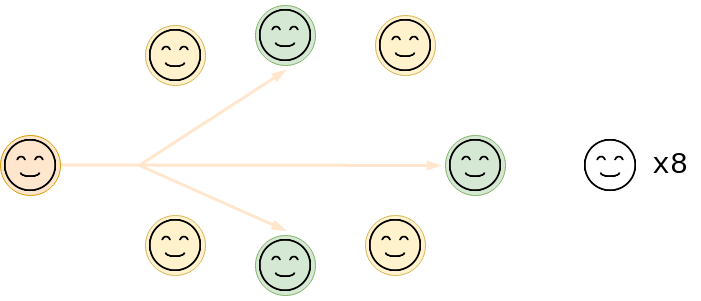

Multicast

• Seems perfect! 🙂
• Unregulated multicast is broadcast 🤬
• Multicast is hard …

LAN Solution

• Control protocol between multicast router and end-devices
  • IGMP – Internet Group Messaging Protocol (IPv4)
  • MLD – Multicast Listener Discovery (IPv6)
• IGMP/MLD snooping is used by layer-2 switches on a LAN
• Switch snoops IGMP/MLD control traffic to reduce flooding

Waht?

• Reduces the broadcast effect of multicast on a LAN
• Subscription based protocol – think: newpapers
• A group is the IP destination address for multicast
• A listener (or receiver) subscribes to a multicast group

• Only members/subscriber of a group receive the multicast data

• Other commonly used terminlogy:
  • multicast sink (receiver)
  • multicast source, or sender/origin(ator)
  • join or leave a group (subscribe and unsubscribe)
  • group membership query – from router/querier
  • membership report/reply – from end-device

How?

• Many LANs don’t have a multicast router
• Most switches can act as a multicast querier instead
• Query reaches all devices on the LAN
• End-devices reply if they want a multicast group
• Replies alway reach the elected querier
• Queries and replies seen by switches along the path

“Q: Anyone want multicast?”

Multicast Flow (1/2)

• Multicast data is always forwarded towards the elected querier
• Snooping switches can either
  • flood “unknown” multicast, or
  • prune “unknown” multicast

Multicast Flow (2/2)

• As soon as querier, or snooping switch sees reply
  • Multicast data is forwarded on that port
  • First reply to a group → multicast becomes “known”
• If multicast stream already passes switch, forwarded immediately

RFC 1112

• Reserved IPv4 multicast: 224.0.0.0 – 239.255.255.255
• Reserved IPv4 MAC multicast prefix: 01:00:5e:xx:xx:xx (23 bits)
• MAC address overlap:
  → 225.1.2.3 => 01:00:5e:01:02:03
  → 226.1.2.3 => 01:00:5e:01:02:03
  → 239.1.2.3 => 01:00:5e:01:02:03
• Most layer-2 switches can only filter multicast on MAC address level
• Set up an IP Multicast Address Plan for your site/org!

Unkown vs Known Multicast

• Unknown: multicast with no subscribers → forward to querier
  • Must always be flooded towards the querier/router
  • What if it’s only unknown in one VLAN on a VLAN trunk port?
• Known: at least one subscriber
  • Must also be flooded towards the querier/router
  • When the last subscriber leaves the group → unknown multicast

Basic Concepts

• Multicast router daemon
  • Opens kernel multicast routing socket
  • Manipulates kernel multicast routing table
  • Examples: SMCRoute, mrouted, pimd, pimd-dense, pim6sd
• Kernel does the actual routing (forwarding): lan1 → lan2
• Kernel cannot do multicast routing without a router daemon
• (S,G) routes → (source, group)
• (*,G) routes → (anysrc, group)
• Active Linux multicast routes (currently) must be (S,G)
• Kernel routes limited to MAX 32 interfaces

mrouted

• First dynamic multicast routing daemon
• Has RIP built-in (yes, really)
• Only IPv4
• Built-in IGMP v1/v2/v3 querier support
• Works out-of-the-box, no config needed

• Devices with maaaany interfaces need config …

    no phyint
    phyint lan1 enable
    phyint lan2 enable

SMCRoute

• Static routing daemon, with some dynamics
• No IGMP/MLD querier function

• Needs configuration to do anything at all

    # cat /etc/smcroute.conf
    mroute from lan1 source 192.168.1.42 group 225.1.2.3 to lan2
    mroute from lan1 group 225.3.2.1 to lan2

    # smcroutectl help
           <----------- INBOUND ------------>  <--- OUTBOUND ---->
    add    IFNAME [SOURCE-IP] MULTICAST-GROUP  IFNAME [IFNAME ...]
    remove IFNAME [SOURCE-IP] MULTICAST-GROUP

    join   IFNAME [SOURCE-IP] MULTICAST-GROUP
    leave  IFNAME [SOURCE-IP] MULTICAST-GROUP

    show   [groups|routes]

• Listens for new inbound multicast streams
• Maps multicast streams to (*,G) routes

• Creates a dynamic (S,G) Linux route

How to Debug

1. Verify multicast group of inbound traffic, e.g. tcpdump
2. Check TTL – hands-down most common problem, too small TTL

3. Check kernel and routing daemon setup

    # bridge mdb show
    # cat /proc/net/igmp
    # ip maddr

    # cat /proc/net/ip_mr_vif
    # cat /proc/net/ip_mr_cache
    # ip mroute

    # mroutectl help
    # smcroutectl help

Intro

• Multicast routing on a device w/ switchcore can be challenging
• Limitations in kernel switchdev dsa driver:
  • does not support offloading of multicast routes
  • has some remaining issues with multicast router ports
• Multicast routing with SMCRoute needs workaround:
  • SMCRoute is not an IGMP/MLD quierier
  • Cheat by using mgroup IFNAME GROUP to allow group to reach CPU
  • By joining group on the inbound interface we can route it

Multicast Routing (1/3)

Multicast Routing (2/3)

Multicast Routing (3/3)
