If you can’t beat ’em – join ’em!

• Google forked the Linux kernel (Android)
  • They later decided it was not worth the trouble and worked out a compromise with the upstream maintainers
• Google is a big company
• This company is tiny in comparison – so smol!
  • Can’t afford to be a fork

Reasons for Upstreaming

• Costly to maintain local changes to FLOSS in-house over time
• Delays FLOSS package upgrades:
  • Critical customer releases get delayed
  • CVEs go unfixed for long periods of time
  • Projects start backporting new upstream features
  • Random instability issues – bad backports
  • Complexity increases further …
• Delays Company New Product Releases
  • Stuck on older kernel – hard to upgrade
  • Need new kernel for new SoC support
  • Extremely hard or costly to backport to old kernel
• Most in-house patches are not core business
  • Integration changes, e.g., build system, logging, …
  • Backported fixes/features
  • In-house fixes and even new features

Reasons for NOT Upstreaming

• “It’s a complicated upstreaming process, they use … a mailing list?”
• “It’s only some small patches …”
• “It’s only a Coverity fix …”
• “Takes too long …”
• “We’ll do it later …”
• “Why should we help our competition?”

Actual Reasons

• Not in checklist for project’s Definition of Done
• Mental block with devs:
  • “I’m too embarrassed to tell my manager I don’t know how to …”
  • “Surely nobody’s interested in our patches, they’re not even that good …”
• Projects have due dates:
  • Upstreaming is a line activity
  • No time reserved for devs
• Unclear if it’s allowed – everything classified as
  • … intellectual property
  • … business critical
• Weak (or no) line organization
• Perceived cost

Benefits of Upstreaming

• Reduced maintenance overhead
• Easier package upgrades
• Increased stability
• Interoperability
• Investment = Cost savings
• Free audit by experienced developers!
  • Great feedback improves our developers
• Free future bug fixes, performance improvements, testing, etc.
• Over time, builds a good reputation for the company
  • Great PR with little goodwill
  • Attracts other great developers … hard to find otherwise
  • Easier to get upstream support and attention in future
• Empowering developer’s increases engagement with the company

What Should be Upstreamed?

• Possibly huge backlog of patched packages
• Prioritize!
• Top 5 most important FLOSS packages
• Top 5 most important/painful patches in each package
• Lather, rinse, repeat …

What Should NOT be Upstreamed?

• integration.patch
  • Odd build fixes for internal build system
  • Other integration changes required for our end-product
• Disabling of package syslog messages
• Changes to package identity:
  • Hide exact package/version from port scanners and log skimmers
  • Logs which can be sent as clear text over the wire
• Other Company specific patches
  • Performance optimizations, e.g., moving tasks from
    a power-save work queue to a high-priority one

Big No-Nos

• HTML email
• Code dumps:
  • Complete source tree dumped on GitHub or ZIP file on FTP
  • HTML email to mailing list pointing to dump URL
  • “Hey, you may want this … kthx bye!”
    → Need to stick around to follow-up and answer feedback
• Email disclaimers; “message contains CONFIDENTIAL information”
  • Usually added indiscriminately by Company IT dept. to all email
  • Ask IT or local manager to disable
  • Use another email provider (Gmail example later)
• Asserting “your right” or “this must be fixed” in forums/mailing lists
  • Company did not pay to use the FLOSS package
  • Instead – be humble and polite
  • The FLOSS package’s license clearly defines rights & responsibilities

Who?

Maybe we need to start with the obvious question –
who wants to participate in upstreaming?

• Not all devs may want to work with upstreaming due to
  • … privacy issues – e.g. protected identity for self or family members
  • … personal preferences – association with Company outside work
• GDPR, right to be forgotten – how should Company handle this?
• Company may end up needing an upstreaming team just because of this …
• Even more obvious perhaps, who does the company trust
  to represent it in the wider FLOSS Community?

Taking Inventory

First-timers should select a simple one to start with
rather than the ones most important to Company

• What do we have?
• Prioritize, as mentioned previously
• Which ones are most painful to port when upgrading?
• Classify:
  • Integration (never upstream)
  • Too specific to Company – discuss; can it be generalized?
  • Candidate – add to backlog
• Huge changes may need to be broken down into multiple patch series

Auditing Candidates

• Internally in team first
• Be tough on each other, it’s just code
  • Does it provide value to community, is it general enough?
  • Is it applicable to the latest upstream version?
  • Does it perform sufficient error handling?
  • Can we supply a test-case or at least use-case?
• Clean up coding style to match project’s style, or at least surrounding code
• Rebase on the latest upstream version, or master/main branch
• Patches as logical changes, easier to review, required when bisecting:
  • Add feature X
  • Use feature X
  • Test case for feature X
  • Offloading support for feature X

Signing Off

• Developer Certificate of Origin (DCO) – a legal statement
  • Signed-off-by: “I sign off on this, attesting to origin of change …”
  • Reviewed-by: “Reviewed by me, attesting to technical validity and readiness …”
  • etc.
• Signed-off-by is the only applicable tag when submitting changes upstream
  • It is expected that you have (reviewed and) tested changes before sending
• Initiated by Linux kernel community
• Used by many other projects today
• Support for adding/highlighting/extracting in many editors and other tools
• Can also be used internally by orgs, simplifying quality review processes
  – “I sign off on this, attesting proper procedure/process has been followed …”

https://www.kernel.org/doc/html/latest/process/submitting-patches.html#sign-your-work-the-developer-s-certificate-of-origin

Submitting Upstream

• Learn about project, its people and guidelines
  • Where is upstream?
  • Is the GitHub project only a mirror?
  • Do they use mailing list or pull request?
  • Check if project uses DCO
• Addressing the Right People
  • Is it the proper sub-project or mailing-list?
  • To: and Cc: of the correct people
• Testing the waters --rfc, or ready for mainline?
• Setting up Your Email Client (MUA)
• Add email header (see ~/.gitconfig later):
  • Organization: Company Inc
  • Credits Company as sponsor of the work
  • Used by maintainers when publishing per org. stats
    → This in turn can be used by Company for brand labeling
  • Examples in upcoming slides
• Disable email (html) footers/company confidentiality disclaimers

Etiquette

• Plain text is usually preferred
• Avoid top-posting, use quoted-lines instead https://en.wikipedia.org/wiki/Posting_style
• Remember, always be polite! (Expect different cultures, Swedes can be too direct)
• Many FLOSS projects have a formal Code of Conduct, see e.g., https://contributor-covenant.org
• What does it do? Present your idea or problem in plain words in the cover letter
  → you can assume other’s on the mailing list know how the program/subsystem works
• When applicable; avoid vendor-specific terminology, use IEEE/IETF
• New standards based features:
  • Explain how it relates to the standard
  • How it applies to the program/subsystem
• There may be many more use-cases for your new feature/setting
• Be prepared to rework patch to generalize even further → this is a good thing™
• Don’t send reminders, at least not too soon!
  • Maintainers are likely busy with other things, also they don’t who you are
  • Help out instead to do Reviewed-by on other’s patches – build cred & learn
  • At least two weeks before sending reminder to mailing-list/pull-request/IRC
• Always reply to feedback! (Using Reply-All, not private replies …)
  • Ask questions if you don’t understand what something means
  • Even if you understand and plan to address feedback, say so!
• Pull Request Etiquette: https://gist.github.com/mikepea/863f63d6e37281e329f8

Linux

• Mailing list based – https://lore.kernel.org/
• Anyone can read (with git) and send to lists
• https://www.kernel.org/doc/html/latest/process/submitting-patches.html
• Huge, divided in subsystems with subsystem maintainers
• Follows kernel release cycle, some subsystems closed in periods
• DCO – uses Signed-off-by, Reviewed-by, … tags
• https://www.kernel.org/doc/html/latest/process/
• Lots to keep in mind, but also lots of great tooling available
  • scripts/checkpatch.pl detects most style issues
  • scripts/get_maintainer.pl figures out who to send patches to
  • make C=1 will run the static code analyzer (sparse)
  • Be lazy, automate as much as possible
    • An example: lore-up
    • Find what works for you!

https://www.kernel.org

Buildroot

• Mailing list based – https://lore.kernel.org/
• Anyone can read (with git) and send to lists
• Very active https://patchwork.ozlabs.org/project/buildroot/
• DCO – uses Signed-off-by, Reviewed-by, … tags
• Make sure to follow naming conventions and script style
• If it’s not in the Buildroot Manual, check other major packages: Linux, BusyBox

https://buildroot.org

Buildroot Checklist (1/2)

1. Make your changes on an up-to-date branch from Buildroot master

    $ git checkout -b package/foo
    $ git fetch --all --tags
    $ git rebase origin/master

2. Use logical commits; upgrade package as one, changing/extending behavior as another, etc.

3. Use commit messages to record why changes are made. First line is a summary referencing the sub-system, followed by an empty line and the message body, and concluded by your sign-off

    package/foo: bump version to v1.2.3

    Signed-off-by: Your Name <your.name@example.com>

4. Verify formatting of package files; .in, .mk, etc.

   $ ./utils/check-package package/foo/*

5. Test your package/change with a set of cross-compilation toolchains

    $ ./utils/test-pkg -c foo.config -p foo

   The foo.config menuconfig snippet enabling BR2_PACKAGE_FOO=y and deps.

Buildroot Checklist (2/2)

6. Format your patches, with --cover-letter for patch sets

    $ git format-patch --cover-letter -M -n -s -o mail origin/master

   Remember to edit the cover letter — it serves as an introduction and explains the reasoning behind your changes. Focus on the why, not the how, the patches have separate commit messages

7. Figure out DEVELOPERS to Cc in your correspondence to the mailing list

    $ ./utils/get-developers mail/*
    git send-email --to buildroot@buildroot.org --cc foo@example.com

8. At the very least, the script should output

    $ git send-email --to buildroot@buildroot.org

9. Append mail/* to send. You and others in Signed-off-by, Reviewed-by: are Cc:ed by default

    $ git send-email --to buildroot@buildroot.org --cc foo@example.com mail/*

https://troglobit.com/post/2022-01-04-buildroot-development-checklist/

BusyBox

• Mailing list based – http://lists.busybox.net/mailman/listinfo/busybox
• Mailing list must be subscribed to send to
• Maintained by Denys Vlasenko
• DCO – uses Signed-off-by, Reviewed-by, … tags

https://busybox.net

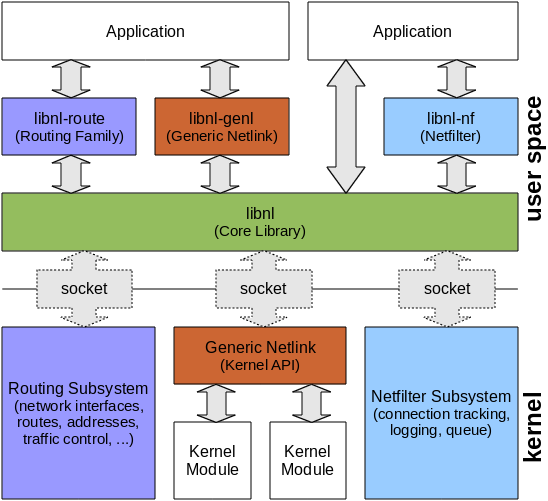

libnl

• GitHub based – https://github.com/thom311/libnl
• Not very active, can be slow to respond
• Uses Pull Requests and Issues

https://www.infradead.org/~tgr/libnl/

GitHub Pull Request Workflow

https://www.youtube.com/watch?v=rgbCcBNZcdQ

• Requires a GitHub account
• Company currently does not require corporate accounts
• Preferably join the Company org. on GitHub
• Preferably fork project to the Company org.
• Checklist: https://gist.github.com/Chaser324/ce0505fbed06b947d962
• Consider Pull Request Description == cover letter

General

• Avoid HTML email
• Disable email footers
• Project-specific guidelines
• Use git format-patch to create patch emails from commits
  • Remember --cover-letter when there’s 2+ commits
• Use git send-email to send patches
  • Need git-email package on Debian/Ubuntu/Mint
• Use your email client to reply and do audits
• Use git format-patch -vN for, e.g., v2 of a patch or --rfc
• Include any Reviewed-by: tags in follow-up patches
  • However, not if you’ve changed substantial parts of patch

https://www.kernel.org/doc/html/latest/process/email-clients.html

Google Gmail

• Many people have an account
• Easy to add “another” account: yourusername+oss@gmail.com
• Doesn’t add any obnoxious corporate footer
• Your contributions are yours:
  • Remember attribution to Company previously
• However, avoid the web client:
  • Changes tabs to spaces
  • Wraps text (patch text) unconditionally
  • Base64 encodes messages with non US ASCII characters: åäö
• Instead, use with external client:
  • Get application specific password
  • Enable IMAP for fetching email

~/.gitconfig using Gmail as SMTP server

[user]
    name           = YOUR NAME
    email          = yourusername+oss@gmail.com
[format]
    headers        = "Organization: Company Inc\n"
    signoff        = true
[sendemail]
    chainreplyto   = false
    smtpserver     = smtp.gmail.com
    smtpuser       = yourusername@gmail.com
    smtpencryption = tls
    smtpserverport = 587
    smtpPass       = yourapplicationspecificpassword
    aliasesfile    = ~/.config/mutt/aliases
    aliasfiletype  = mutt
[sendemail.netdev]
    to             = "davem@davemloft.net, kuba@kernel.org"
    cc             = "netdev@vger.kernel.org"
    cccmd          = "./scripts/get_maintainer.pl --norolestats"

# You can also use "alias-foo" in to= and cc=, expands from ~/.config/mutt/aliases
# git send-email --identity netdev mail/*

Text Based Email Clients

notmuch mail

• Command line client
• SUPER QUICK indexing with Xapian
• Integrates well with MUAs, e.g. Emacs

https://www.notmuchmail.org/

→ https://troglobit.com/post/2021-05-11-emacs-gmail-and-lore-mailing-lists/
→ https://bostonenginerd.com/posts/notmuch-of-a-mail-setup-part-2-notmuch-and-emacs/

Alpine

• Config → Sending Preferences:
  • Do Not Send Flowed Text: enabled
  • Strip Whitespace Before Sending: disabled

Mutt

# .muttrc -- remember to chmod 0600 due to password
set editor="vi"
set imap_user = 'yourusername@gmail.com'
set imap_pass = 'yourapplicationspecificpassword'
set spoolfile = imaps://imap.gmail.com/INBOX
set folder = imaps://imap.gmail.com/
set record="imaps://imap.gmail.com/[Gmail]/Sent Mail"
set postponed="imaps://imap.gmail.com/[Gmail]/Drafts"
set mbox="imaps://imap.gmail.com/[Gmail]/All Mail"
set smtp_url = "smtp://username@smtp.gmail.com:587/"
set smtp_pass = $imap_pass
set ssl_force_tls = yes
set editor = `echo \$EDITOR`
set edit_headers = yes
set charset = UTF-8
unset use_domain
set realname = "YOUR NAME"
set from = "username+oss@gmail.com"
set use_from = yes

Thunderbird

• Known to mangle text!
• In the advanced config editor, disable format=flowed & wraplength
• Enable Plain Text view of message body
• Enable UTF-8 character encoding

Or … use the External Editor option

Evolution

• Composing mail, select Preformat (Ctrl-7) or the toolbar
• Use Insert → Text File… (Alt-N x) to insert the patch

You can also use variants of diff or git show:

$ diff -Nru old.c new.c | xclip
$ git show gHASH | xclip

select Preformat, then paste with the middle button.

Demo mailing list in Emacs with notmuch

Demo of patchwork – review states

Demo git format-patch and generated files

Pull Request on GitHub

Tip

GitHub can give contribution hints
if project has a CONTRIBUTING.md

Changes requested

https://github.com/jleclanche/fireplace/pull/344
→ https://stackoverflow.com/questions/36944055/fixing-a-bad-pull-request

A good pull request

https://www.youtube.com/watch?v=rgbCcBNZcdQ

• Use logical commits with clear commit messages
• Follow coding style, DCO if used in project, etc.
• Sound familiar?

Mailing List

• Qemu PPC power save: v1
• block2mtd label: v1, v2, v3
• Link aggregation: RFC, v1, v2, v3, v4, v5
• Bridge forward offloading: RFC, RFC v2, RFC v3, v4, v5

References

• https://bootlin.com/pub/conferences/2016/collab-summit/petazzoni-upstreaming-hw-support-in-linux-kernel-why-how.pdf
• https://www.ibrahimatlinux.com/uploads/6/3/9/7/6397792/03.pdf
• https://opensource.guide/how-to-contribute/
• https://www.slideshare.net/linaroorg/upstreaming-101-sfo17tr02
• https://www.slideshare.net/linaroorg/bud17tr03-upstreaming-201
• https://01.org/community/signed-process
